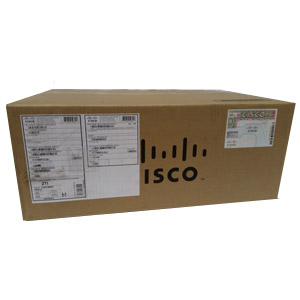

Cisco Catalyst 2960XR-24PS-I - switch - 24 ports - managed - desktop, rack-mountable

Part: WS-C2960XR-24PS-I
Availability: Out of Stock
Price: $1,120.00

Product Information

Cisco Catalyst 2960XR-24PS-I - Switch - L3 - managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable - PoE+ (370 W)

Cisco FlexStack-Plus stacking for Cisco Catalyst 2960-XR series switch provides a true stacking solution, with all switches in a FlexStack-Plus stack acting as a single switching unit. FlexStack-Plus provides a unified data plane and single configuration for a group of stacked Cisco Catalyst 2960-XR switch.

FlexStack-Plus lower the total cost of ownership with built-in 1: N redundancy, high availability, and preprovisioning, not available in standalone switches. High-availability features such as EtherChannel and FlexLinks will work across stack members, increasing uptime and network connectivity.

FlexStack-Plus is an improvement over FlexStack because it doubles the speed of the stack bandwidth and allows for more members to join the stack. The FlexStack-Plus bandwidth for a single stack member is 40 Gbps compared to 20 Gbps with FlexStack. With multiple stack members, the FlexStack-Plus bandwidth is 80 Gbps. With FlexStack-Plus technology, eight 2960-XR members can be joined into a single stack.

  • Device Type: Switch - 24 ports - L3 - managed - stackable
  • Enclosure Type: Desktop, rack-mountable 1U
  • Interfaces: Gigabit Ethernet
  • Ports: 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
  • Power Over Ethernet (PoE): PoE+
  • PoE Budget: 370 W
  • Performance: Switching capacity : 216 Gbps
    Forwarding performance (64-byte packet size) : 71.4 Mpps
  • Forwarding performance (64-byte packet size) : 71.4 Mpps
  • Capacity: Virtual interfaces (VLANs) : 1023
  • Jumbo Frame Support: 9216
  • Routing Protocol: OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
  • Remote Management Protocol: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
  • Features: Layer 3 switching, layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet
  • Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  • Power: AC 120/230 V ( 50/60 Hz )
  • Power Redundancy: Optional
  • Dimensions: (WxDxH)17.5 in x 16.1 in x 1.8 in
  • Weight: 13.7 lbs
